Sonar 3D-15
- The Water Linked Sonar 3D-15 is an advanced 3D multibeam imaging sonar designed to enhance underwater exploration and navigation.
- With real-time 3D imaging capabilities, it provides a comprehensive view of submerged environments, even in low-visibility conditions.

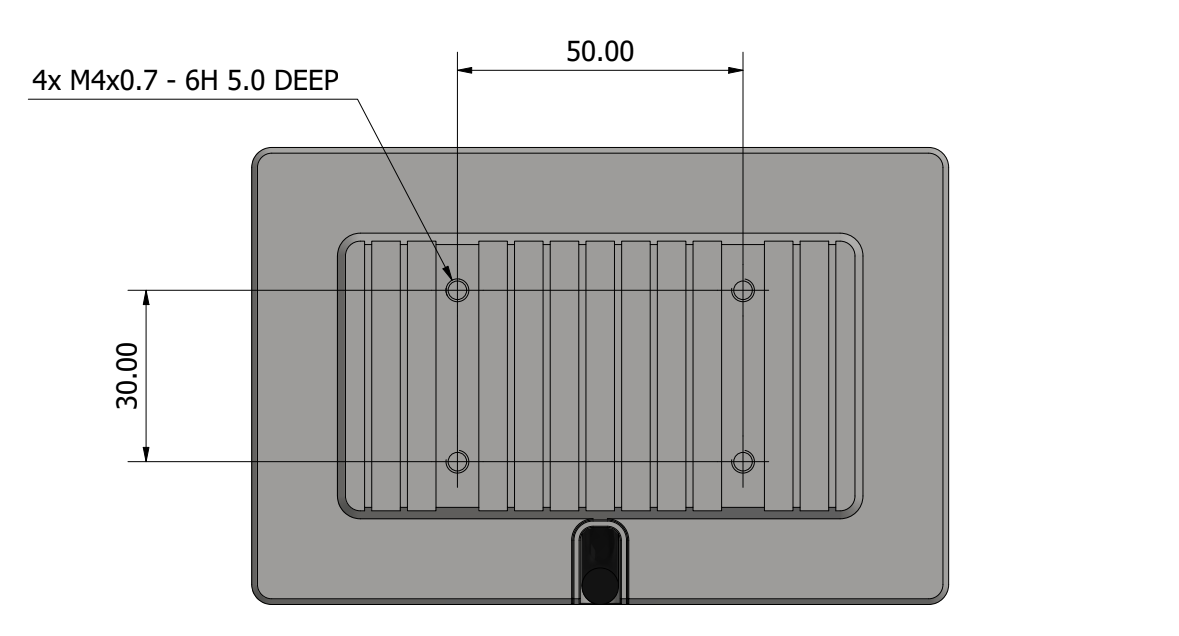

Dimensions

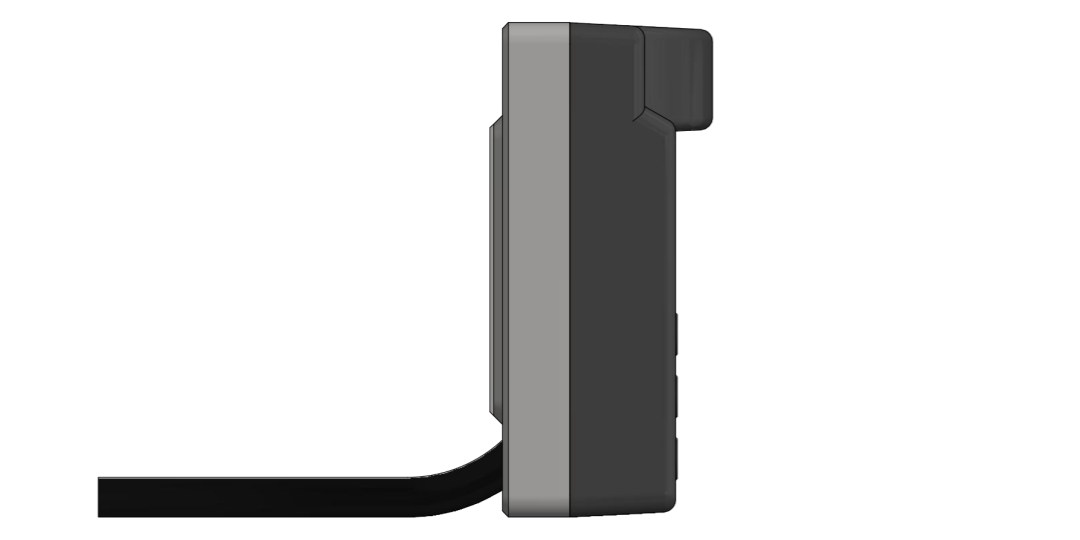

The cable can be bent as shown in the image up to 90 degrees without causing any damage.
Field of view
The Sonar 3D-15 provides an opening angle as described in the tables below for the different modes.
Low Frequency (1.2 MHz)
| Specification | Range |
|---|---|
| Pitch (opening) | -20° to +20° |
| Yaw (opening) | -45° to +45° |
| Vertical coverage | 40° total |
| Horizontal coverage | 90° total |
High Frequency (2.4 MHz)
| Specification | Range |
|---|---|
| Pitch (opening) | -20° to +20° |
| Yaw (opening) | -20° to +20° |
| Vertical coverage | 40° total |
| Horizontal coverage | 40° total |
