I/O interface🔗
The I/O Interface provides a simple means of connection to Water Linked products. It provides power and connection interfaces for Water Linked sensors during development.
It utilizes the Molex Micro-Fit 3.0 power connector (Part number: 436500228). Female connectors are listed under Mates with Part(s).
There currently exist multiple revisions of the I/O Interface. Revision 2 and 3 are electrically identical. Revision 4 has an integrated USB-to-UART interface and a micro USB port. Revision 6 has upgraded connection options, including screw terminals and RS-232.
I/O interfaces have the part number WL-31014-X, where X is the revision number.

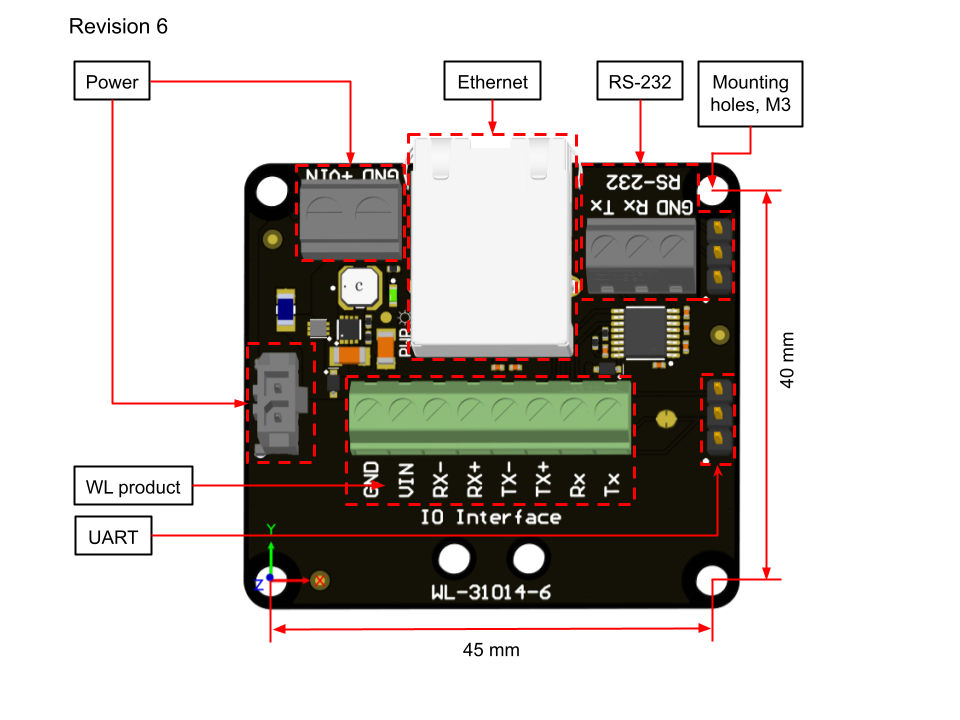

Revision 6🔗
Dimensions: 50.6 x 47 x 18.6 mm (Width x Height x Thickness)
| Connector | Function | Comment |
|---|---|---|
| RJ45 (8P8C) | Ethernet | 10/100 BASE T |
| Screw Terminal or CONN HEADER VERT 3POS 2.54MM | RS 232 | |
| CONN HEADER VERT 3POS 2.54MM | UART | |
| Molex Micro Fit 3.0 or 5 mm Screw Terminal | Power | 10 to 30 VDC |
